SR4L034-Matching , smith chart

Hi

so i get my board after production with SR4L034-R assembled in my design I matched the line to 50 ohm (pcb trace line)

and also I assembled on the line the components like in the EVK  (pi network+inductor on t1 to gnd)

my question is how to match this wide band antenna ?

if I open spen from 600Mhz-2700Mhz how I now which component to change..

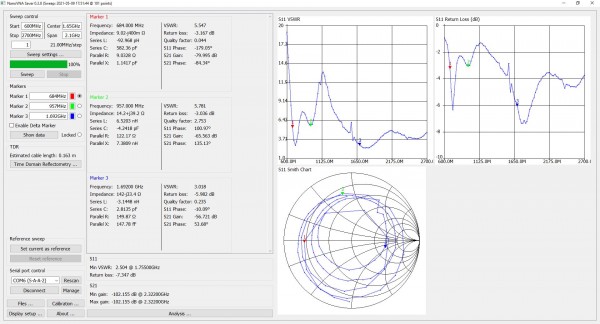

add pic from the van -smithchart and s11 , please advice :

Please log in or register to answer this question.

1 Answer

answered by
Hi Netanel,

This is a service we provide for our customers, you can send the device to us for optimisation and we can provide a full passive performance report including matching component values. I have passed your details on to your regional representative who will be in touch to assist.

Many Thanks

Steve
