QUESTION

asked by
M20048-1 No GPS coordinate

HI,
I have made a PCB using M20048 as standalone. I tried to use Arduino to get GPS coordinate. Connect TX and RX M20048 to RX and TX of Arduino. I am using TinyGps++ library. I tried also to connect  M20048 TX,RX to USB to TTL and there is no response from the module. I am not using any antenna because i want to use the integrated antenna which comes with the module. I checked the power and it's 3.3V, I also checked Tx,Rx Power of M20048 and it have voltage, the last thing I did is to check if there is any short circuit but there is no. Hope to get some help

Best regards

Please log in or register to answer this question.

2 Answers

answered by
Hello Anas,

What is the blue layer? If it is copper, it is shorting the antenna having a strip ran along the antenna end of the module.

Best regards,

Geoff S.
answered by

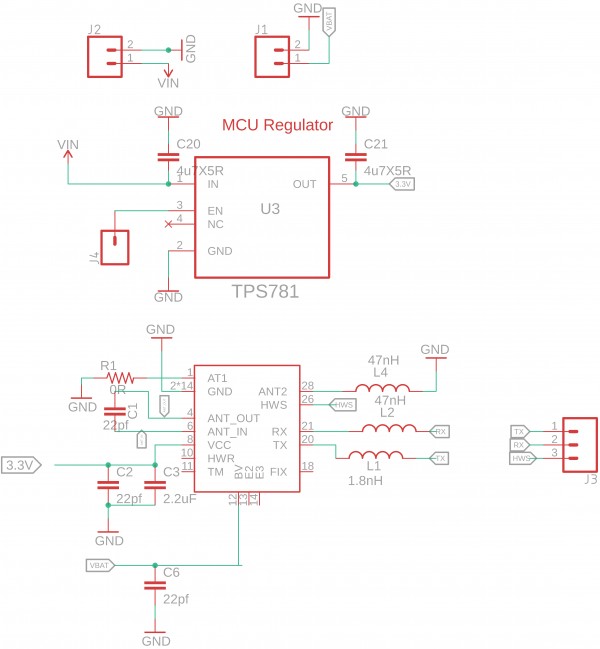

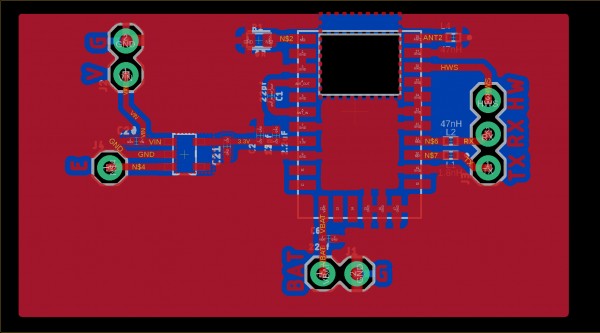

Hi, the Blue layer is the bottom layer. I placed the GPS on the top layer (Red) and i made isolation  Under the antenna, so there is only substrate under the GPS antenna. I am not even able to receive any data from UART
