QUESTION

asked by

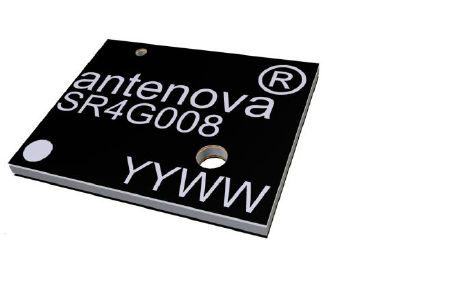

Can you confirm the axis of the Antenna pattern of the SR4G008, its hard to get from the Product spec

Please log in or register to answer this question.

1 Answer

answered by
edited by

Hello Bart,

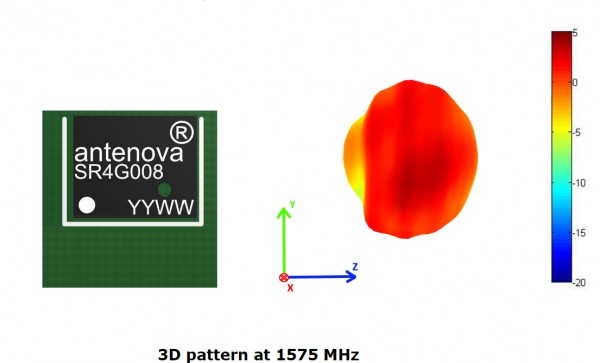

Below is a straight-on image of the pattern of the SR4G008 antenna as it looks integrated onto a PCB.

Best Regards,

Dan
