Is there a disadvantage to using a smaller transmission line over a larger one?

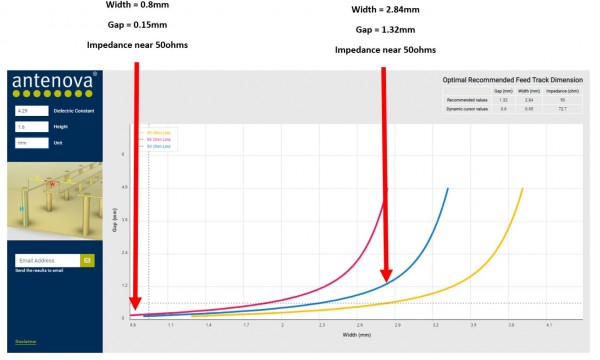

The transmission line calculator shows that a 50 ohm impedance match can be achieved with two widely different widths and gaps. Is there any drawback to choosing the smaller transmission line over the larger one?

Please log in or register to answer this question.

2 Answers

answered by
I suspect with larger trace width variation in the dielectric will have a slightly greater effect on the impedance. Also at the smaller extreme you can run into manufacturing tolerance issues if the trace were to get too small. I would recommend to keep in mind the size of the other components that may be in the RF path. For instance if you have a pi matching network and are using 0402 size components it would be a good idea to make the trace width the same as the width of the pads of the components to avoid transitions in the trace size.
answered by
I concur with AB9TE regarding component size.  For example, you use 0402 parts in the matching network with a t-line 7 mil width and gap for a 50 ohm match, but the tradeoff requires a dielectric thickness between the signal layer and the ground plane on the order of about 4 mils.
