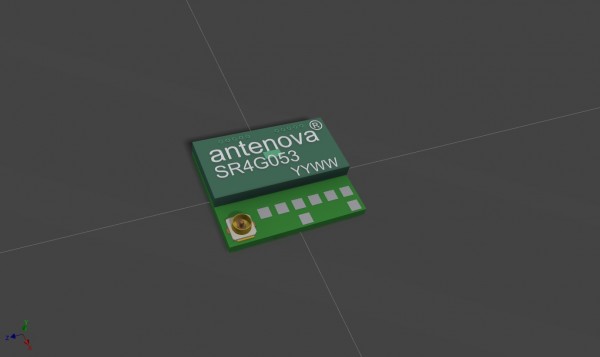

Tentative Raptor SR4G053 board layout

I've had a look at the Raptor datasheet and the reference design. Is there any reason why something like the above wouldn't work? I need a very compact arrangement.

Thanks.

Please log in or register to answer this question.

1 Answer

answered by
Hi, Raptor is designed to work with the host GND to radiate. In a setup like this we would need to test and understand your whole device. Please can you contact us directly for further discussion on this matter. Please email on techsupport@antenova.com

Thanks
