Hello,

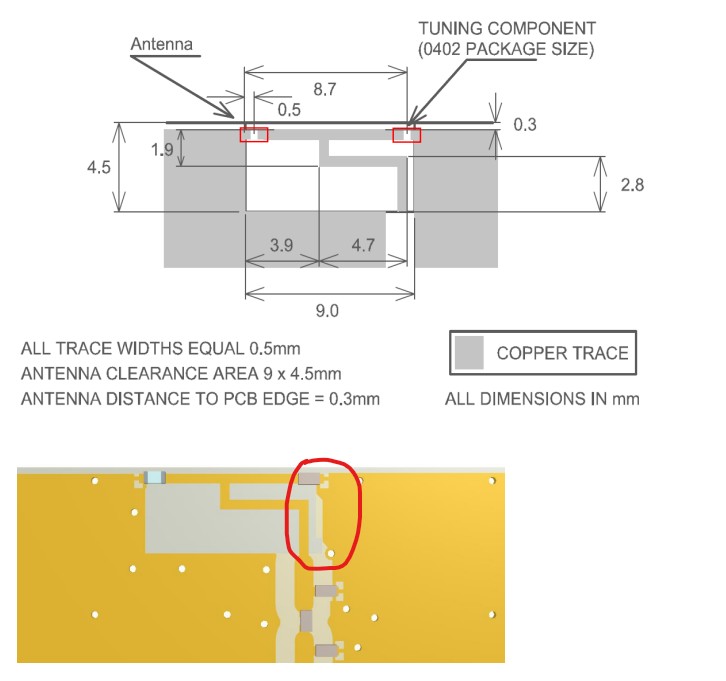

I am putting the SRCW004 on my board. The datasheet measurements don't match what is shown in either the datasheet images or the footprint provided on your website for download. For example, the image below shows the area in red does not match. The top layer copper is much further back than 0.3mm. The other layers below seem to have a proper clearance except for the square area at the bottom right near the input feed line that sticks out.
The footprint provided does not match the dimensions of the datasheet, and the silk/mech layer 1 lines don't line up with anything important. I've attached a footprint that has measurements close to the datasheet, and I included the original one to compare. The original is on top.
I am putting the SRCW004 on my board. The datasheet measurements don't match what is shown in either the datasheet images or the footprint provided on your website for download. For example, the image below shows the area in red does not match. The top layer copper is much further back than 0.3mm. The other layers below seem to have a proper clearance except for the square area at the bottom right near the input feed line that sticks out.
The footprint provided does not match the dimensions of the datasheet, and the silk/mech layer 1 lines don't line up with anything important. I've attached a footprint that has measurements close to the datasheet, and I included the original one to compare. The original is on top.
