Hi,
thought about using Allani and Billi antennas for MIMO/Diversity setups of LTE/5G and Wifi 2.4/5/6.
Boards size is around 120x70mm. Could placing Allani on short sides (so they use long board for GND Plane) and Billi on Long sides be a configuration?
Also would place Active GNSS Patch Antenna in the middle of the Board (upward facing)

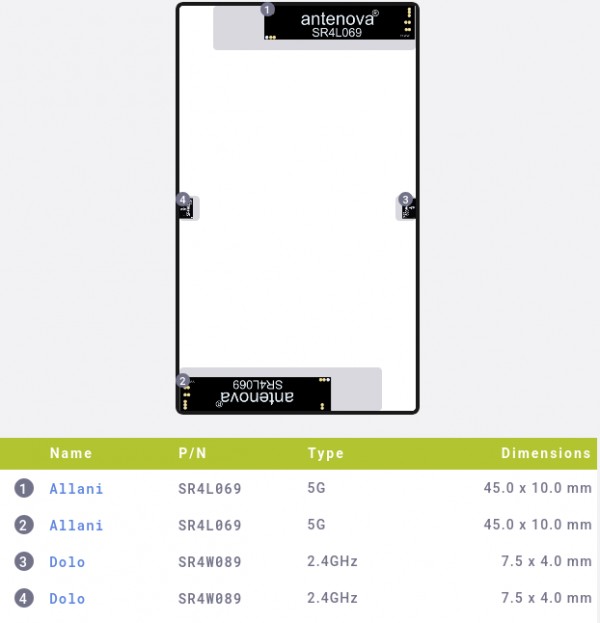

Do you see any Problems in this setup? Your board designer would recommend 2 Allani on short sides, opposite corners. Afterwards could just place 2.4G e.g. Dolo antenna on the long edges for mimo setup.
So instead of Dolo would use Billi instead.
Do you see better way of using this space?
kind regards
Andreas
Yu Kai Yeung
Antenna Engineer at Antenova Yu Kai is an antenna expert with over 10 years of experience in the design and testing of antennas. He has experience helping customers with certification testing, combined with his knowledge of RF measurement procedures.
