QUESTION

Question

Hello,

I am following a suggestion made in the datasheet and looking for the following?

A low-cost external circuit can be used to provide external antenna support. Please contact Antenova for more information and an example circuit.

Thanks,

Best Regards,

Blair

Answer 1

Hi Blair,

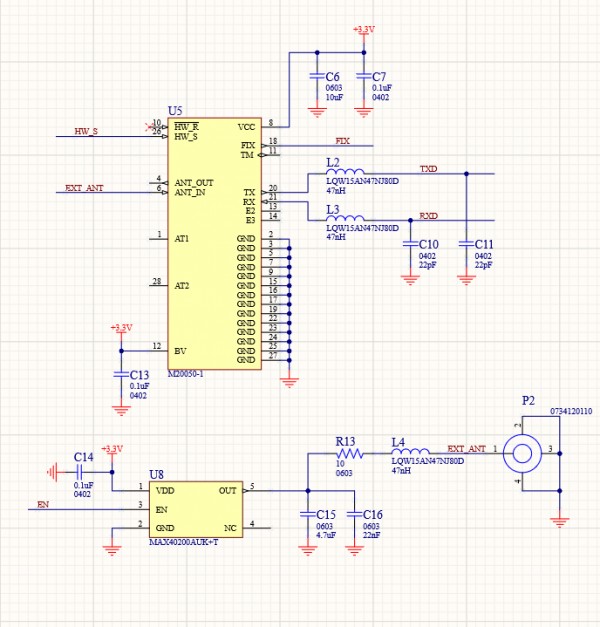

I have attached the external circuit schematic.

Best regards,

Yu Kai Yeung

Comments

Hello Yu Kai,

Given the image you supplied, I cannot read the part number for U1 it is to small and blurry.

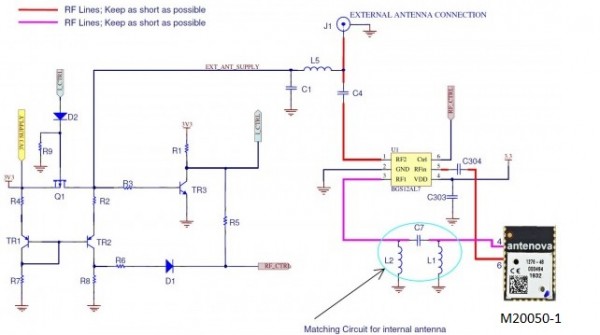

Any thoughts on the circuit below?

Regards,

Blair

---

Hi Blair,

If you are only using external antenna I would suggest using M10578-A3 as it more suitable for this project.

Best regards,

Yu Kai Yeung

---

Hello,

Could you send me the schematic for the eval board M10578-A3-U2

Thanks,

Blair

---

Hi Blair,

I have sent it to your email.

Best regards,

Yu Kai Yeung
