Help with antena PCB design

Hello, I want to use your antenna chip (M20057-1) instead of another passive antenna (1001011 / KYOCERA AVX) to enhance the system performance.

During my testing I wasn't able to get a fix (led blink of M10578-A2 GPS chip) with the M20057-1 antenna even with some hours of working.

You can find all the schematic below with the component value, can you help me if I don't miss anything with the design ?

I'm waiting for your response,

Sincerely, Mr Levesque Electronic Engineer in R&D department for Obsta Company

Please log in or register to answer this question.

1 Answer

answered by

Hi Mr Levesque,

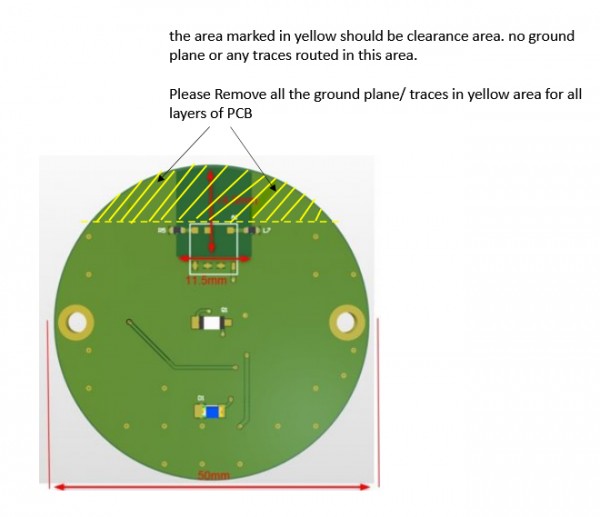

I think the performance issue is from the M20057-1. The ground plane on both sides of the antenna needs to be cleared of copper. I have attached a picture for your reference.

Best regards,

Yu Kai Yeung
