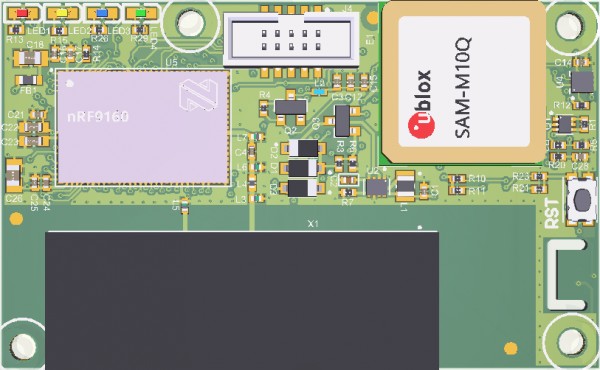

Move Screw Hole from Edge with SR4L073

PCB is 35mmx57mm. We are seeing poor performance. Could it be an issue with screw placement?

Please log in or register to answer this question.

1 Answer

answered by
Hi Paul,

Theres couple of issues I see with the design such as antenna placement and screws near antenna.

Can you tell me which bands you need?

Best regards,

Yu Kai Yeung
commented by
LTE-M: 791.0-960.0 MHz; 1710.0-2200.0 MHz
commented by
Hi Paul,

The ground plane is too short those bands, have you considered using flex antenna?

Best regards,

Yu Kai Yeung
commented by
What would you recommend?
commented by
I would recommend the Moseni or Mitis
