What are specifics of usage of yours calculator for GCPW transmission?
At your site you offer free calculator for GCPW transmission which takes into account coefficients of, quoting, "dielectric constant", "gap" and width" and my question is - gap and width of what?

Please log in or register to answer this question.

1 Answer

answered by

Hi,

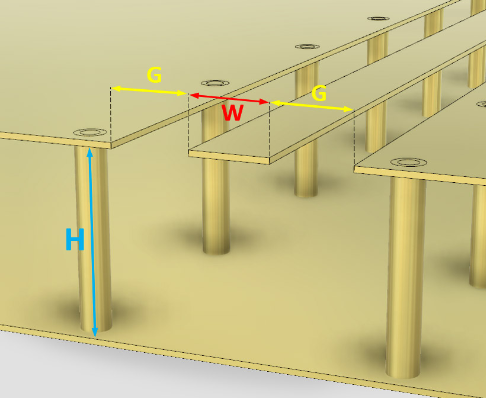

Gap (G) is the distance between the trace and feed on that layer, Width (W) is the width of the feed, Height (H) is the distance between the layer with the feed and the layer with ground plane underneath.

Many Thanks

Steve
