QUESTION

asked by
M20057-1 placement and distance from near by components.

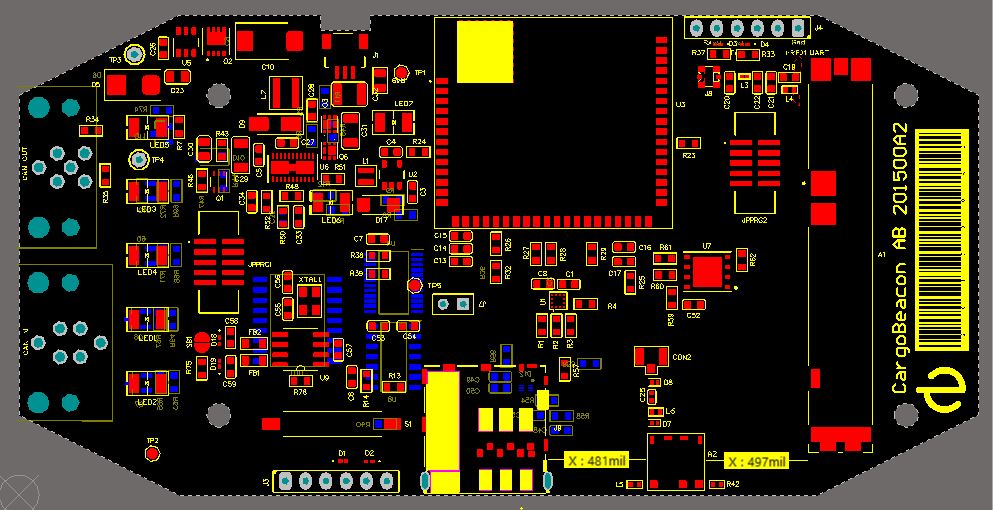

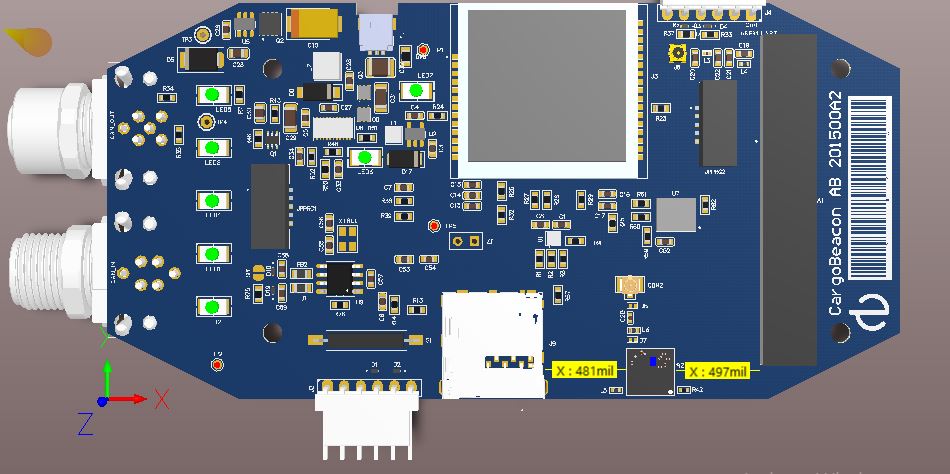

Image 1Hi,
https://ask.antenova.com/?qa=blob&qa_blobid=15727815659713483798
I am designing board of LTE gateway and in that "M20057-1" used as GPS antenna.

I have placed this antenna such that distance from other components is >10mm.
So by this much distance i want to know that is it enough distance for proper performance of antenna?

Also Need suggession of improvement in placement.

Please log in or register to answer this question.

1 Answer

answered by
Hi Abhi,

We offer free design reviews of your device if you would like to contact our tech support email at techsupport@antenova.com. Designing your device so that the GPS antenna is >10mm from your LTE antenna could cause problems with tuning the antenna and with power bleed over from the LTE transmitter into the GPS receiver front end.

Best regards,

Geoff S.
